ADM 70 G

Laser range finder

Order number: 518956

EAN No.: 4030293238398

  • 1× Carrying bag
  • 1× USB-cable
  • 3× Batteries AAA
Local dealers
Operating range0.05 - 70 m
Precision± 3 mm
Laser class2
Power supplyIntegrated battery
Protection classIP54
Dimensions WxLxH118 x 54 x 25 mm
Weight0.132 kg

Advantages

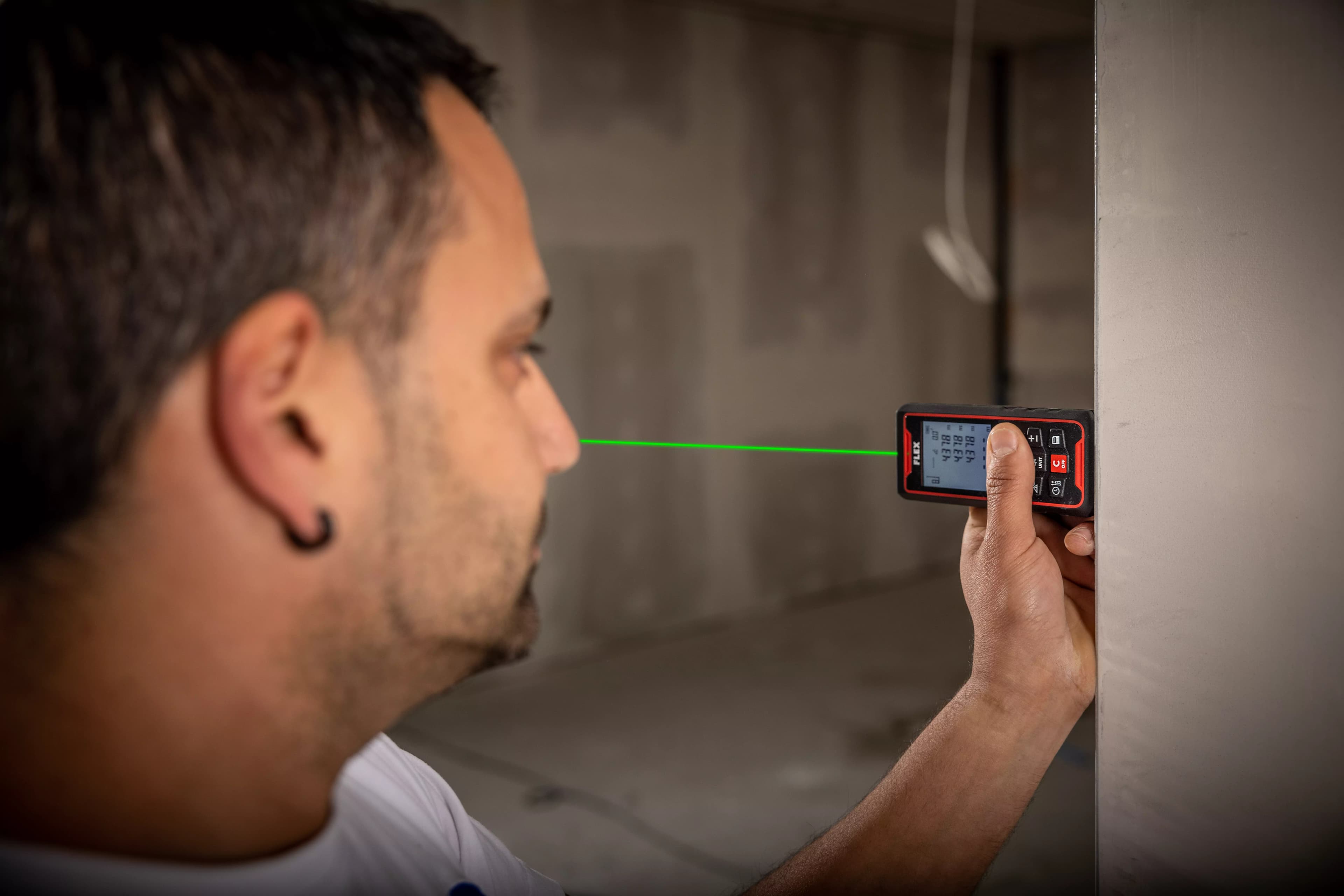

  • Green laser diode

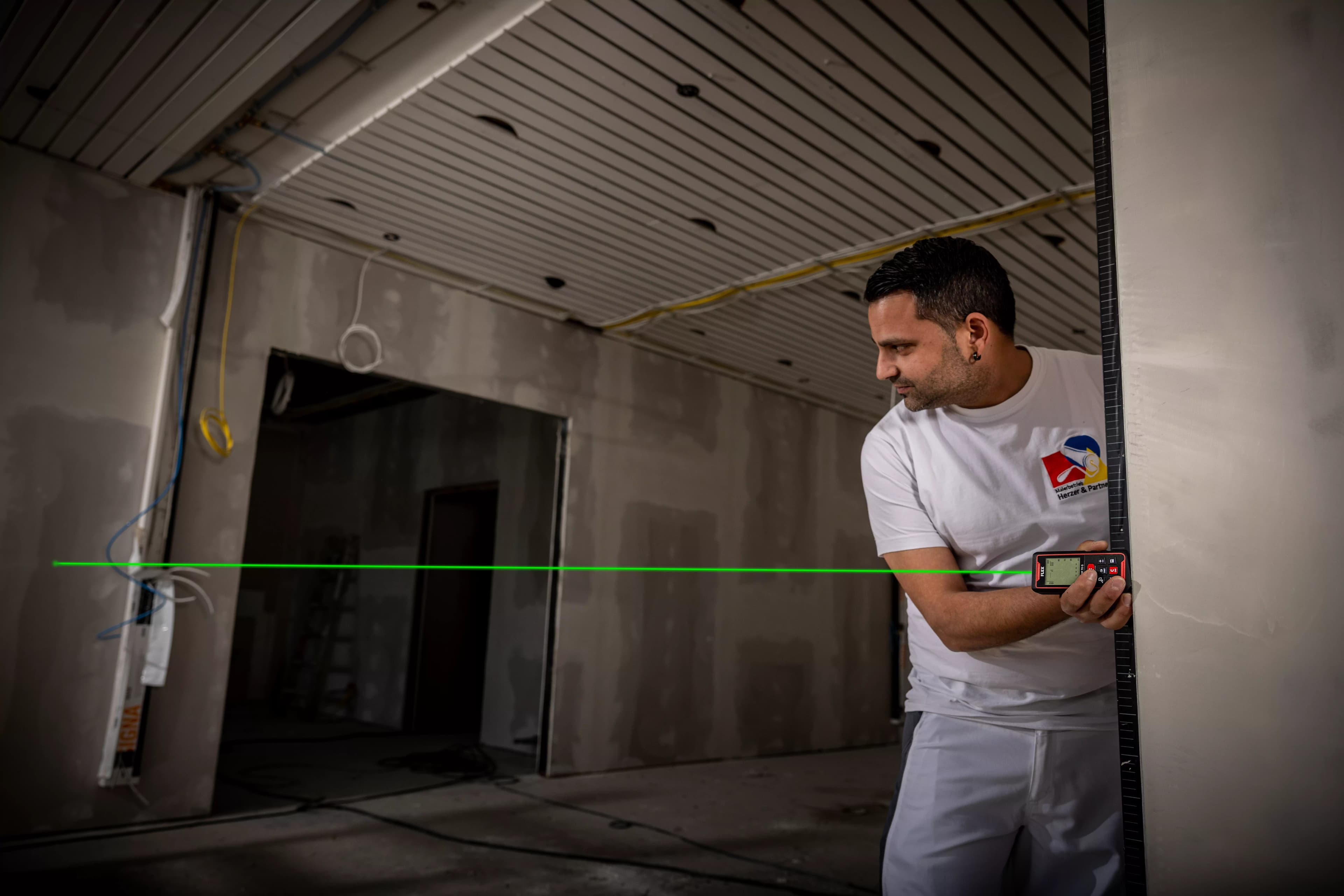

  • The green line is easily visible, even in bad lighting conditions
  • Length, area and volume calculation
  • Determining heights with indirect distance measurement (single and double pythagoras)
  • Quick determination of dimensions on construction sites
  • Simple operation
  • Painter function, automatic sum calculation of individual wall surfaces with the same height
  • Permanent angle measurement to check the measuring position
  • Continuous measuring mode
  • Switchable units of measurement in m/mm, inches/feet
  • Has 3 reference points
  • Minimum / maximum function
  • Memory function for up to 99 values
  • Automatic stop

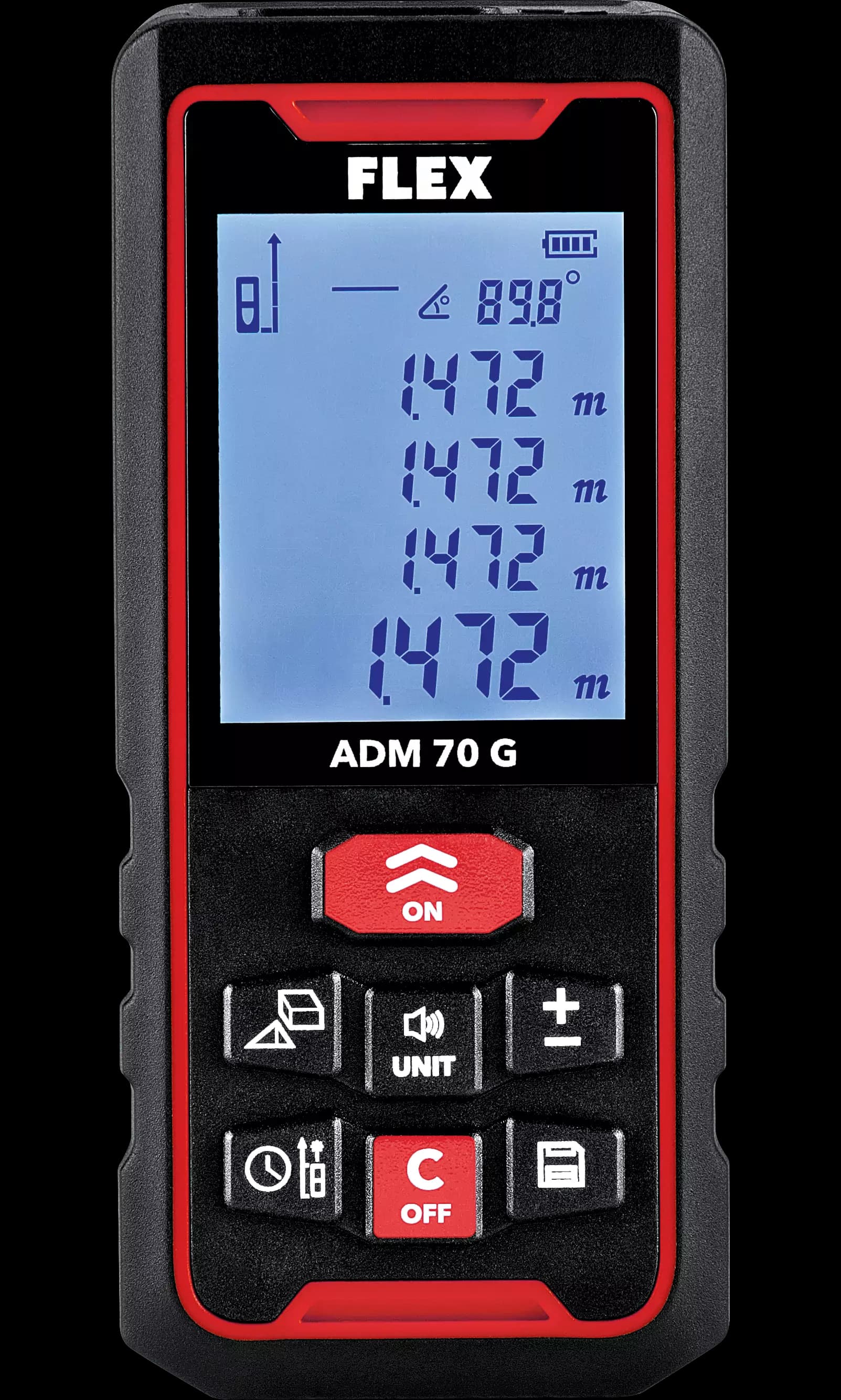

  • Illuminated four-line display
  • Dust- and splash-proof housing

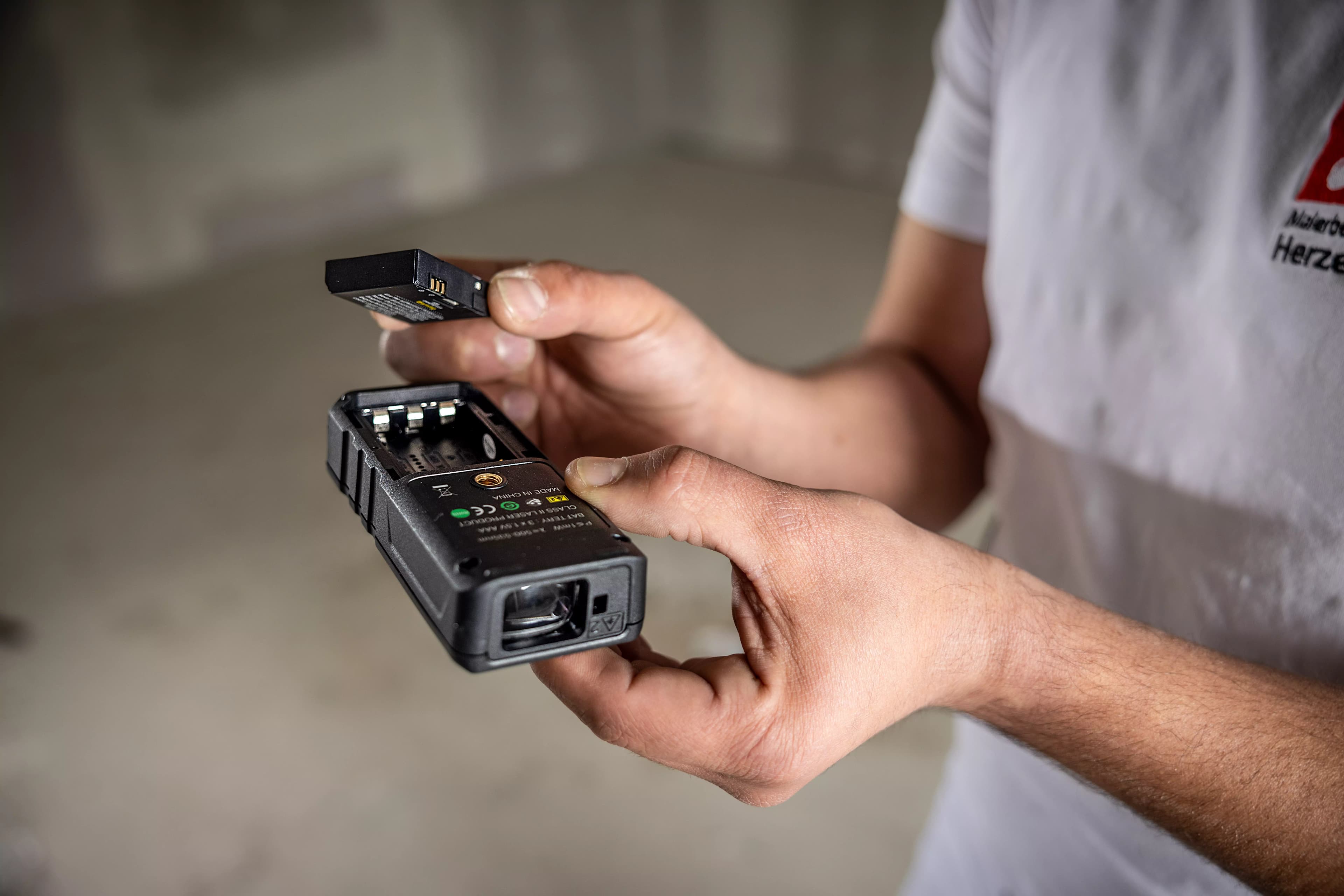

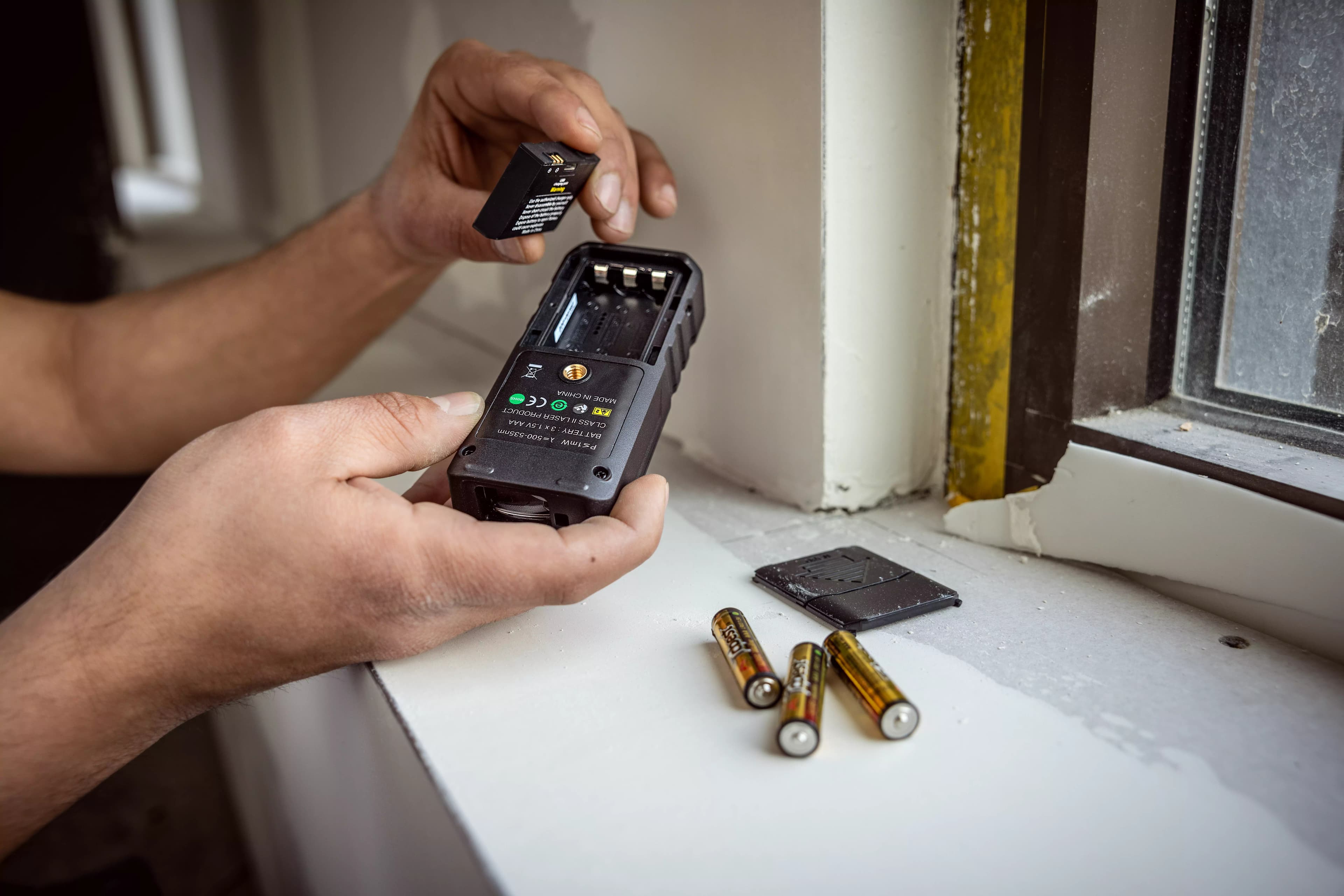

  • Variable power supply, can be operated with AAA 1.5 V batteries or rechargeable battery, incl. Micro-USB charging cable

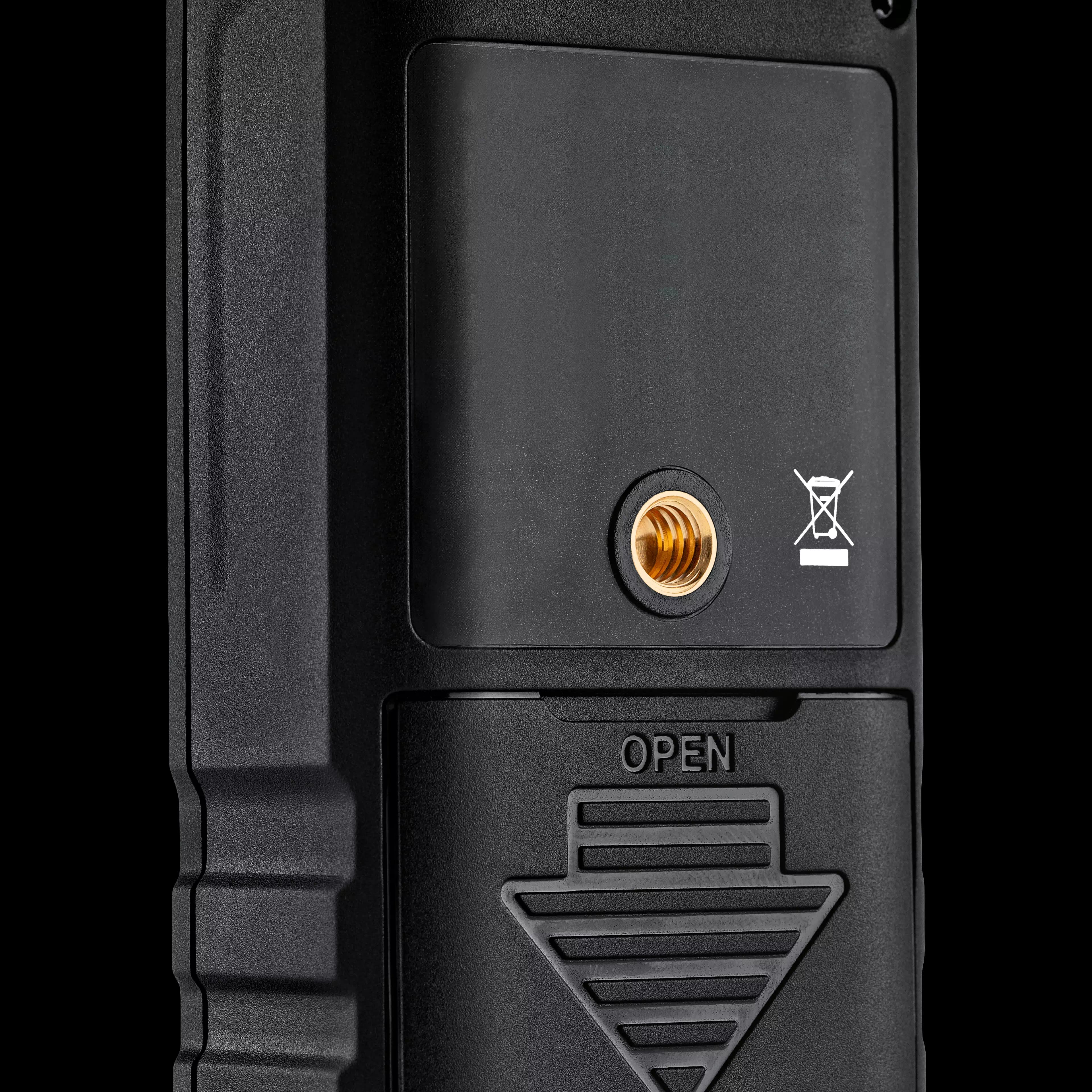

  • ¼” connection thread for tripods

Matching accessories

  • WB-M/S 1/4 ALC-Basic
    Laser wall bracket
  • TC-LG-GL
    Laser target plate and goggles, green
  • PS 10.8/18.0
    Battery adapter
