ALC 2/1-G/R - FLEX Power Tools

ALC 2/1-G/R

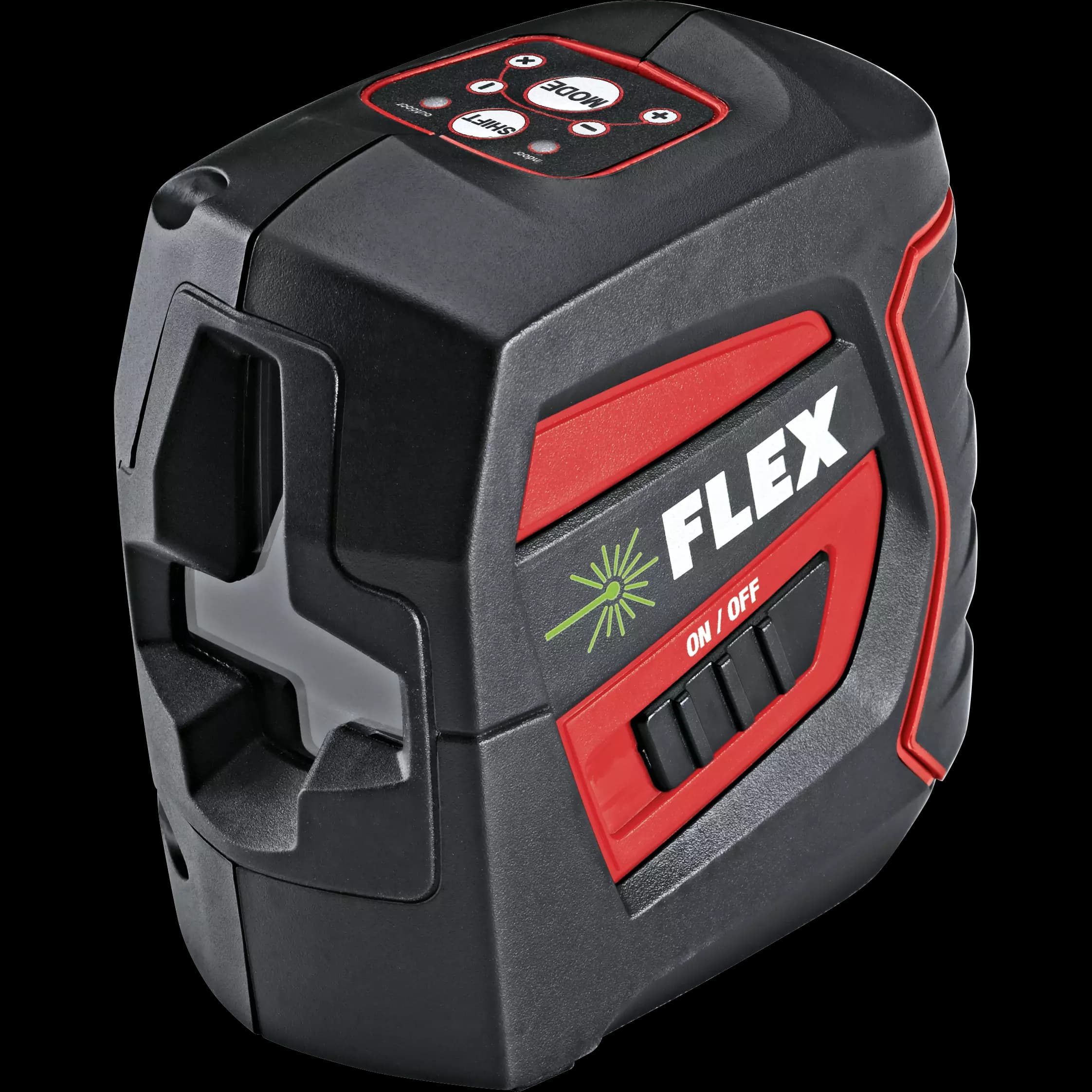

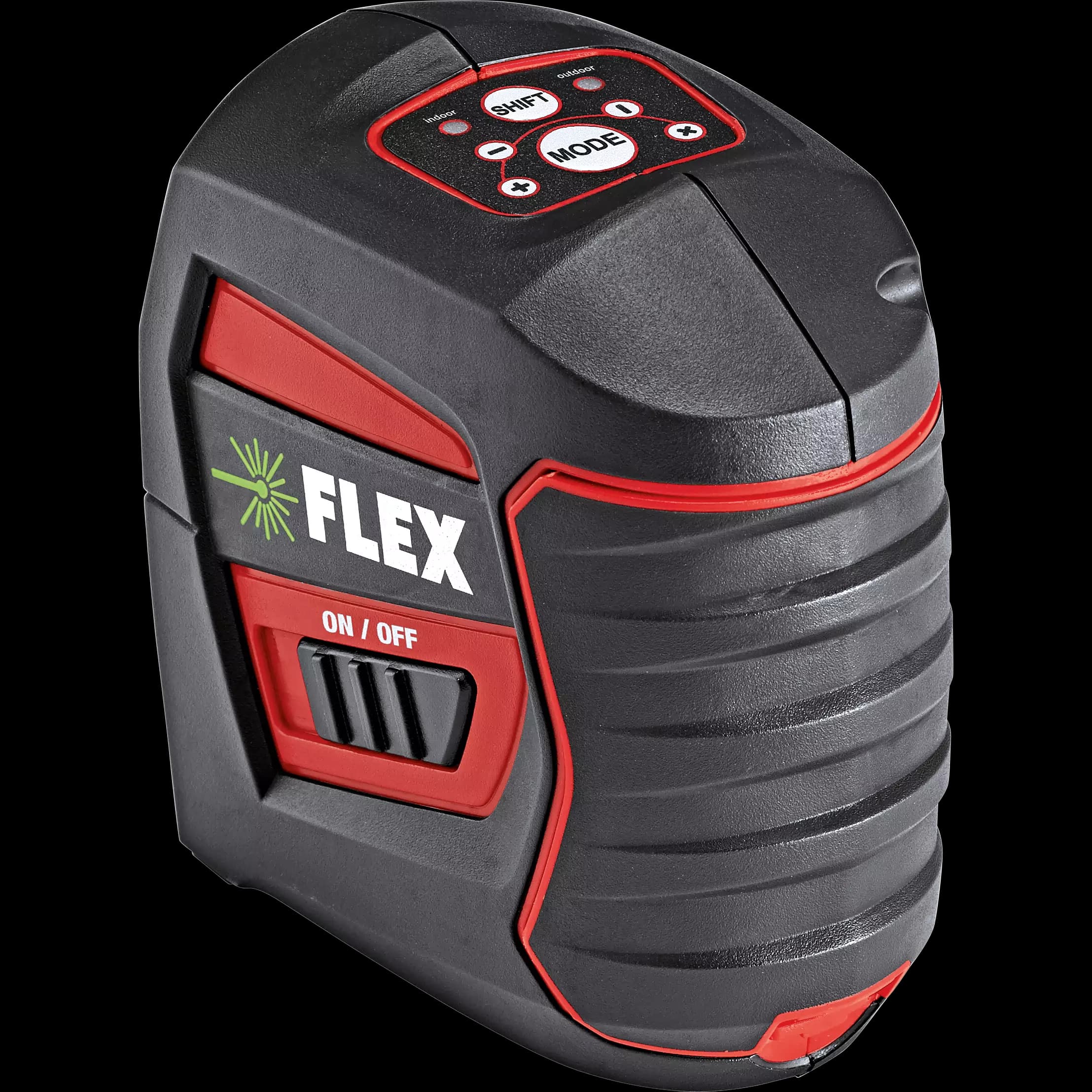

Self-levelling crossline laser with receiver mode

Order number: 509833

EAN No.: 4030293232945

1× Laser wall bracket (428167)
1× USB-cable
1× USB-charger
1× Carrying bag

Number of lines, horizontal	1 Cont.
Number of lines, vertical	1 Cont.
Visible range, horizontal lines	110 °
Visible range, vertical lines	110 °
Laser class	2
Max. operating range	50 m
Max. operating range with receiver	70 m
Precision	± 0,3 mm
Self-levelling range	4 °
Operating time	10 h
Temperature range	-5 - +50 °C
Protection class	IP54
Power supply	Integrated battery
Dimensions WxLxH	57 x 96 x 96.5 mm
Weight	0.36 kg

Advantages

With an individually switchable horizontal and vertical laser line
Specially coated glasses ensure clean and high-precision laser lines.
Green laser diode

The green line is easily visible, even in bad lighting conditions
Extends the range from 50 metres up to 70 metres with receiver
Self-levelling
Optical warning signal when self-levelling range exceeded
Self-levelling which can be switched off
Simple operation
Integrated Li-polymer rechargeable battery
Transportation lock
1/4" thread for tripod

Matching accessories

UH-1/4-5/8 ALC
Laser universal bracket
LAD 5/8 I-1/4 A
Laser tripod adapter
TC-LG-GL
Laser target plate and goggles, green
RC-ALC 3/360
Laser receiver
WB-M/S 1/4 ALC-Basic
Laser wall bracket
PS 10.8/18.0
Battery adapter
