L 26-6 230 230/BS

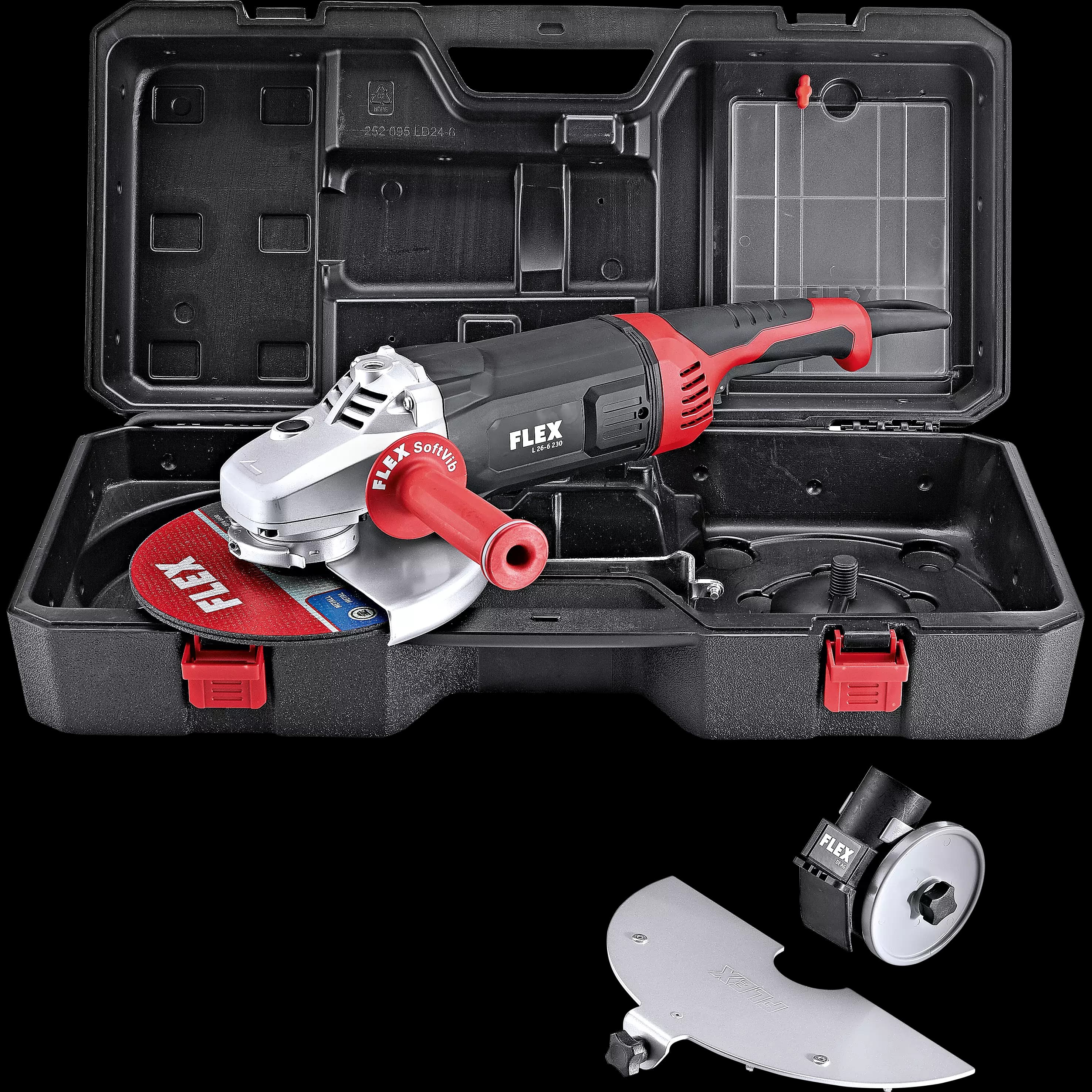

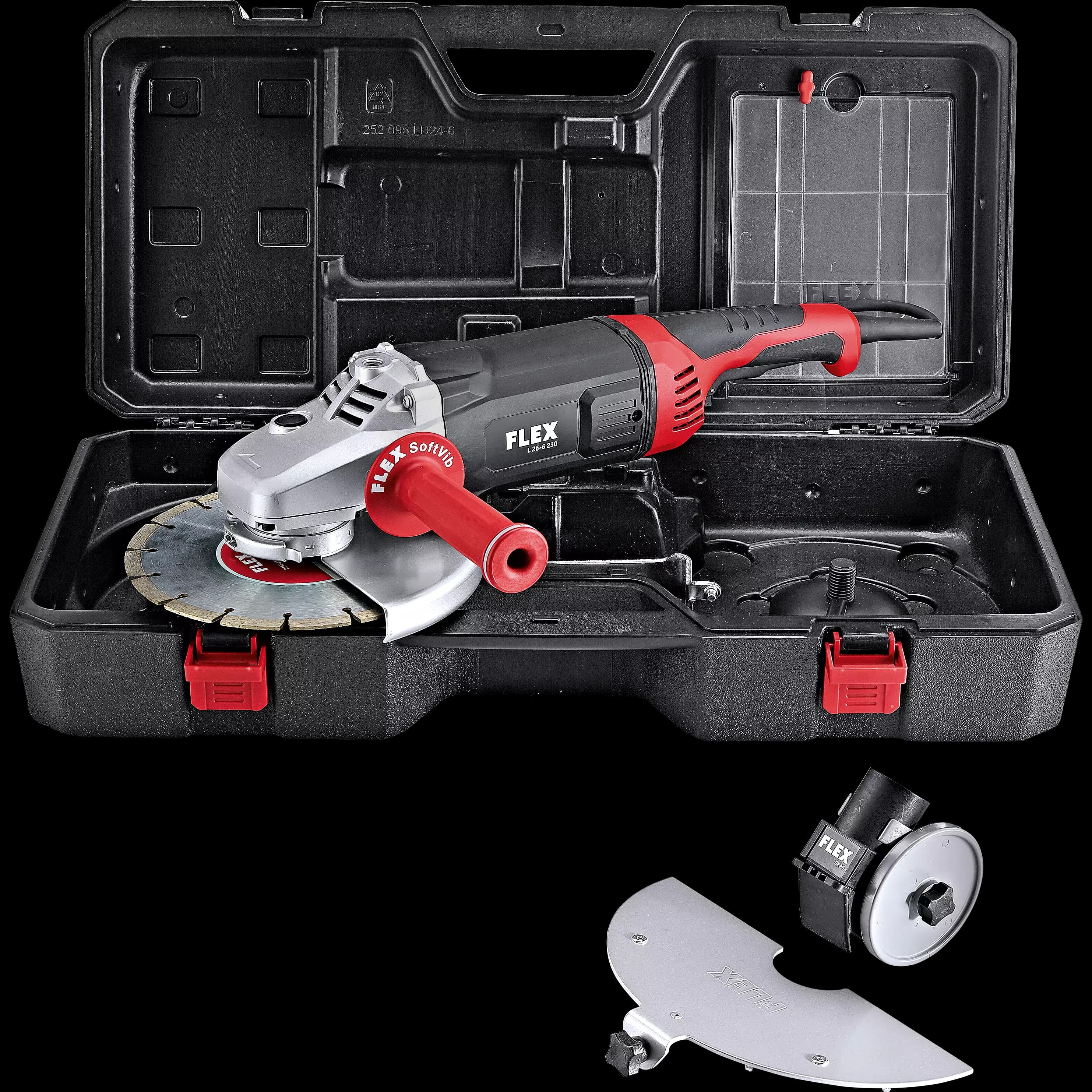

2600 watt angle grinder, Ø 230 mm

Standard supply
Technical data
Power consumption2600 W
Power output1800 W
Voltage230 V
Frequency50/60 Hz
Max. disc diameter230 mm
No-load speed6500 rpm
Angle grinder materialM14
Cable length4.0 m
Dimensions WxLxH500 x 106 x 145 mm
Weight6.35 kg

Advantages

  • Microprocessor control with soft start, restart protection after power failure, overload protection, CDC-electronic feedback control
  • Anti-Kickback - this shuts down the motor on the disc being blocked
  • Robust motor housing and gearbox housing. Stable and robust steel gearbox as well as a spindle bearing protected by a metal cap also increase reliability and durability
  • Highly efficient and resilient motor for more power output
  • An additional vibration damping ring between the motor housing and rear handle reduces the vibrations.
  • SoftVib handgrip for reduced vibration can be mounted in three positions.
  • Rear shaft handle with soft padding for secure grip. The grip area turns 90° to the right and left for an optimum working position
  • Spindle lock
  • Removable covering cap for easy change of carbon brushes
  • Tool-free adjustment of safety guard
  • Cutting guard (389.625) or cover for cutting guard (446.068), as an optional accessory

Matching accessories

  • Diamantjet - diamond cutting disc, standard, concrete
  • Disc guard cover cutting, universal
  • DCG AG 230
    Extraction hood cutting for large angle grinder, 230 mm
  • Flexible backing pad, M 14, 180 Ø
    Elastic support plate with clamping nut M 14
  • TK-S L230/LD180/LD150
    Carrying case
  • D-TCS U 230x22,2
    Diamantjet - diamond cutting disc, universal
  • GU-C D230 64/C L21-6/L24-6
    Cutting guard
  • GS-M M14 SV
    SoftVib side handle
  • Hexagon socket wrench
