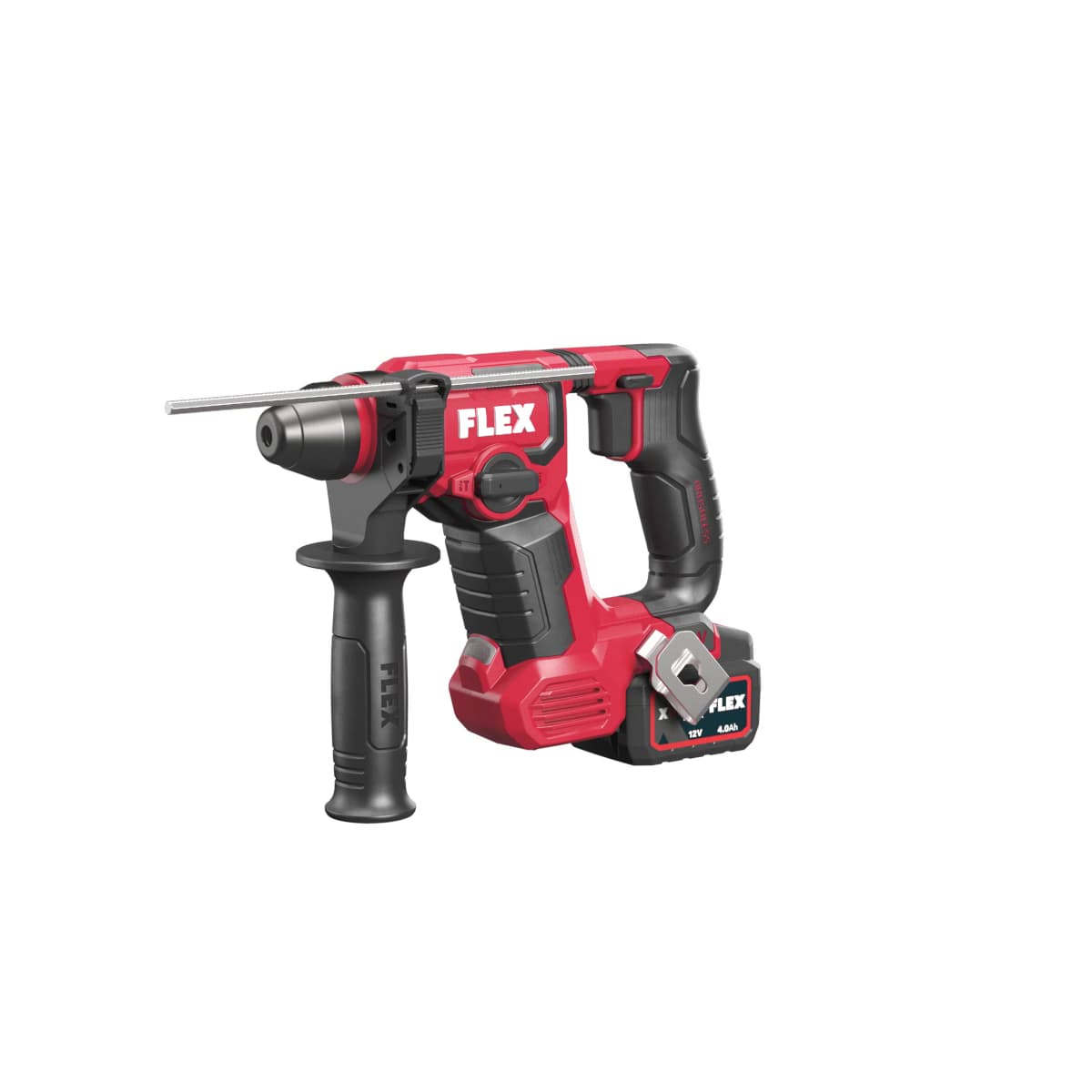

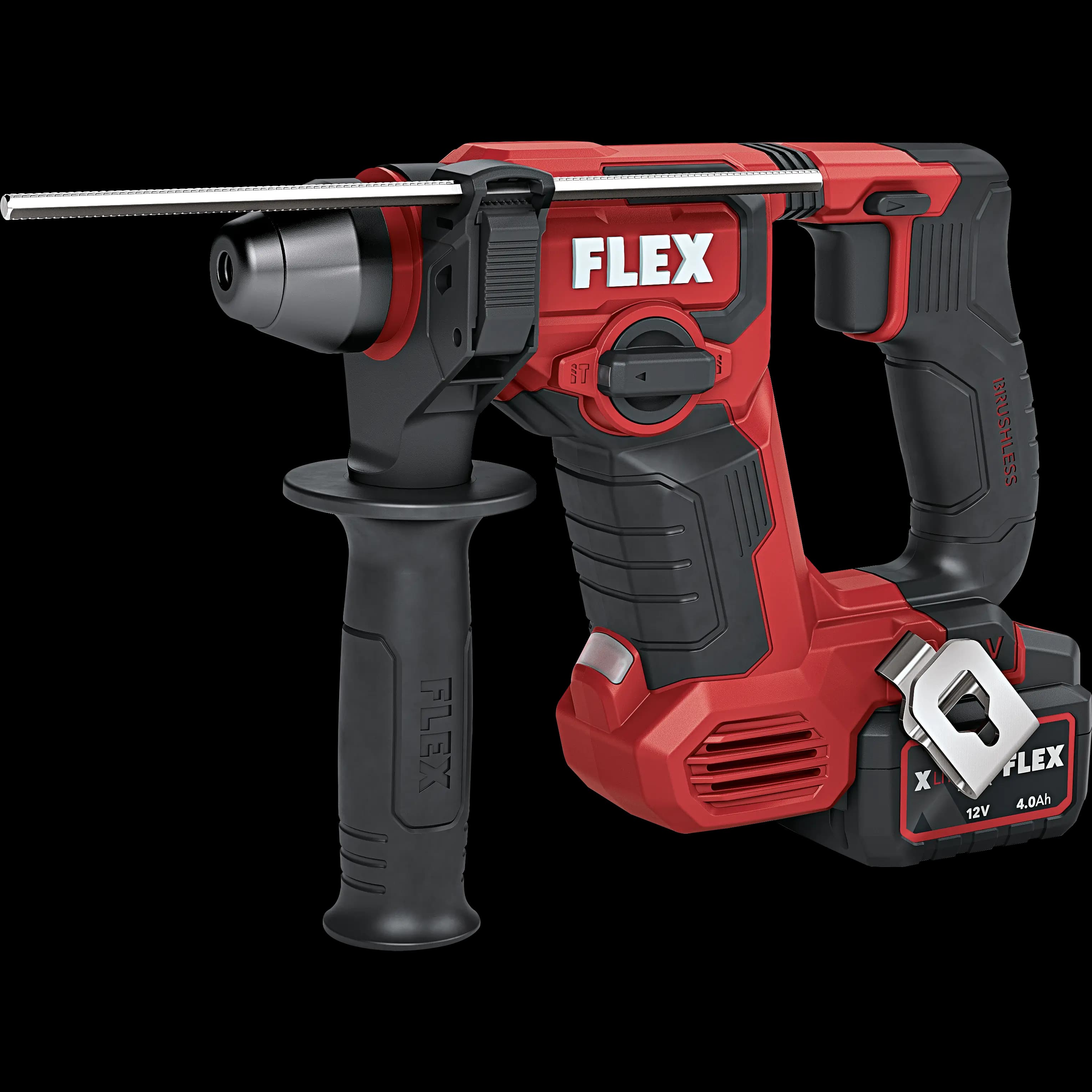

FHE 1-16 12-EC C

Compact and efficient 12 V cordless rotary hammer drill.

Technical data
Battery voltage12 V
Battery capacity2,5 / 5,0 Ah
Tool holder, drill and chiselSDS-plus
Max. single impact energy1,5 J
No-load speed0 - 810 rpm
No-load blows0 - 4500 1 rpm
Max. drilling diameter in concrete16 mm
Dimensions WxLxH263 x 68 x 190 mm
Weight without battery pack1,68 kg

Advantages

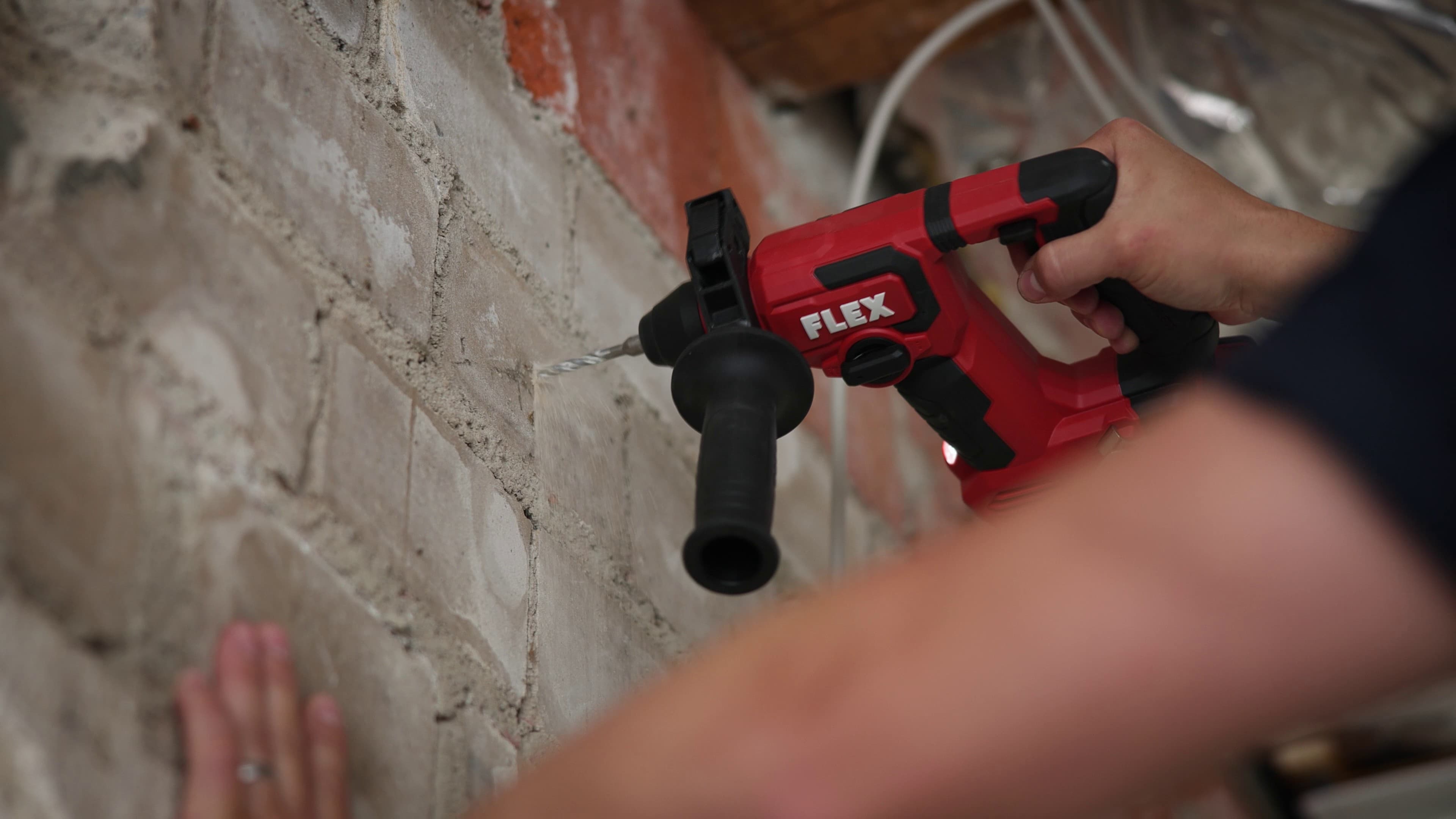

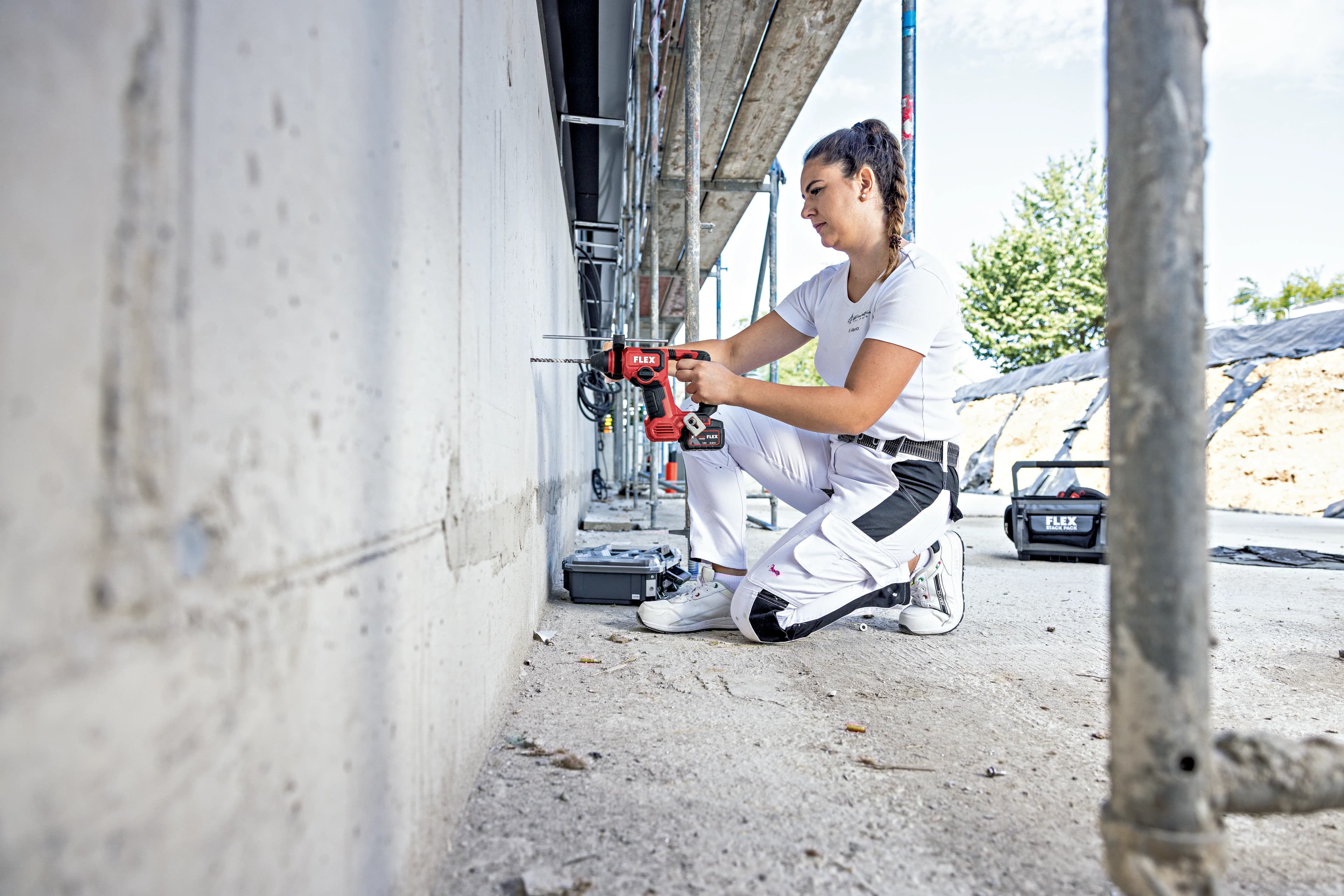

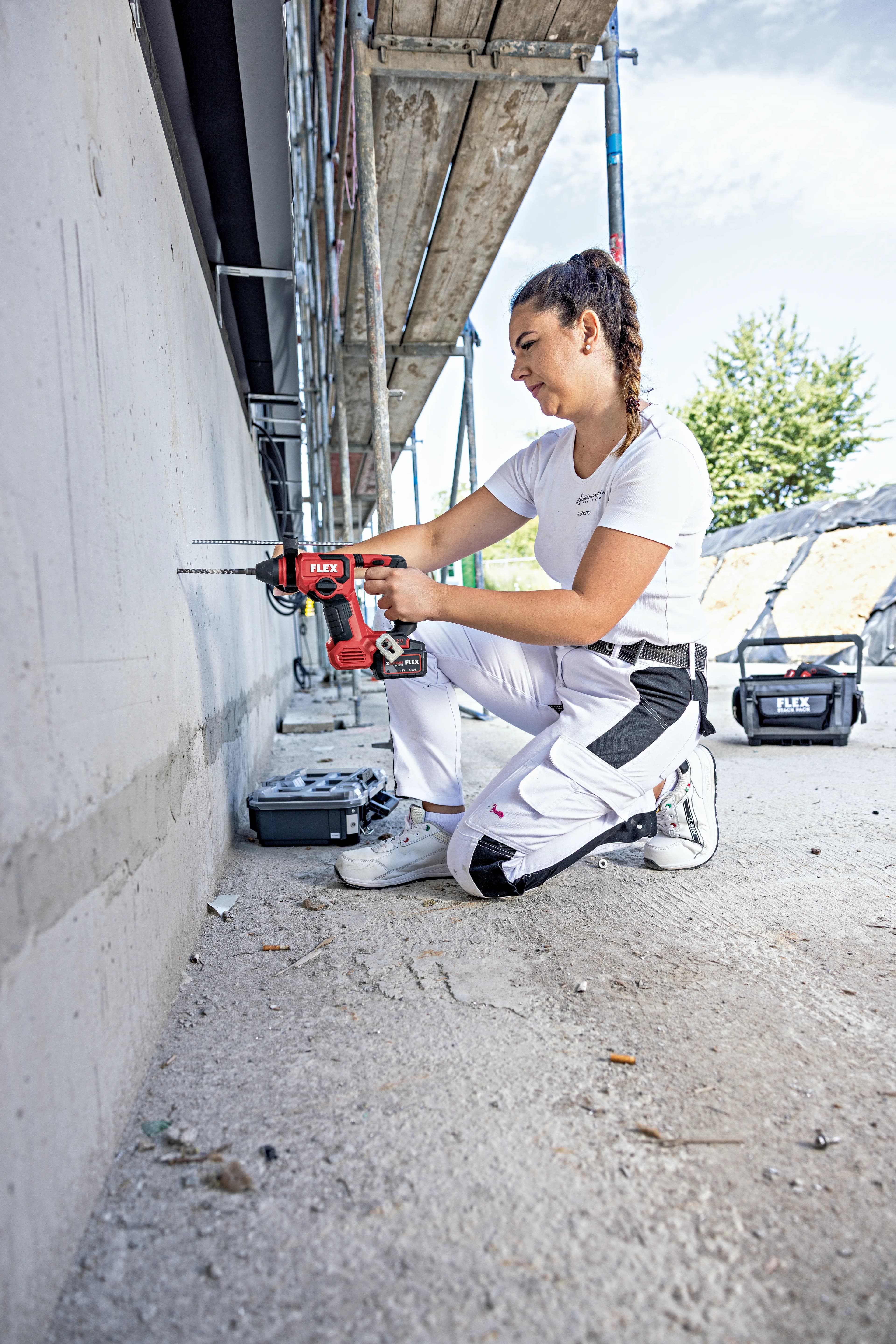

  • Its compact size, light weight and powerful motor make the rotary hammer drill ideal for smaller assembly work and for drilling smaller holes 5-10 mm in diameter.
  • Suitable for drilling/hammer drilling, ideal for 5-10 mm (max. 16 mm) in concrete
  • Brushless motor with greater efficiency and a longer service life
  • Electronic quick-acting brake
  • Right/left rotation
  • Accelerator switch for a slow and gentle start

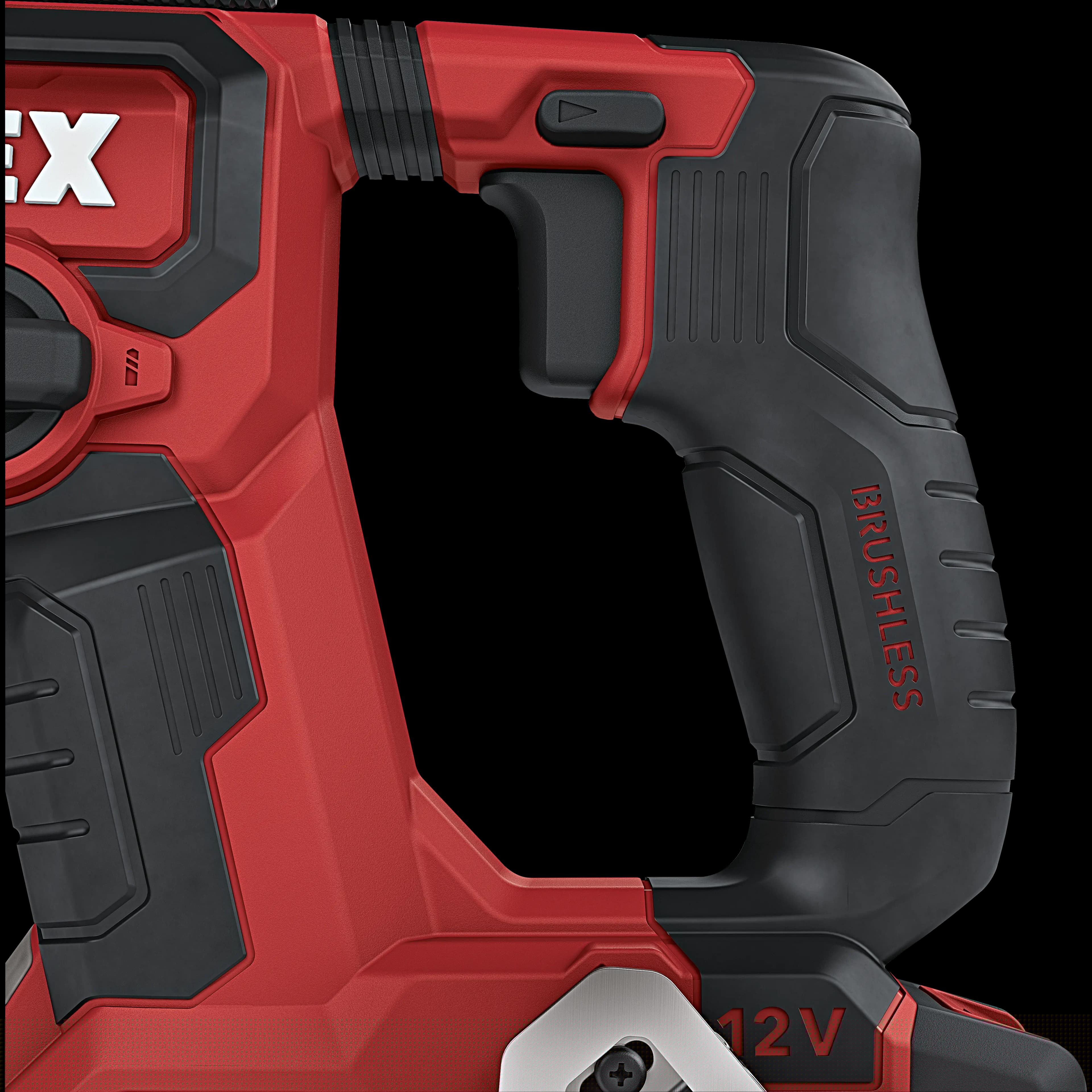

  • Decoupled, ergonomic handle with rubberised grip surface. Vibrations are reduced by a sprung damper and additional vibration damping between the housing and handle
  • Including attachable auxiliary handle, belt clip and bit storage
  • Depth limit gauge: for precision drilling
  • Integrated LED lamp with persistence function
  • Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency
  • LED battery capacity display
  • FLEX battery system: suitable for all FLEX 12 V battery packs. Delivery does not include battery and charger

Matching accessories

  • 2 Versions
    Li-Ion rechargeable battery pack 12 V
  • CA 12/18 230/CEE
    Rapid charger 12/18 V
  • CA 12 230/CEE
    Rapid charger 12 V
  • 34 Versions
    Hammer drill bit set SDS-max, 4-cutting edges Xtreme Plus
  • HD 4-C D5-12 Set SDS-plus
    Hammer drill bit set SDS-plus, 4-cutting edges Xtreme Plus

Matching products

  • 2 Versions
    ALC 3/360-G/R 10.8
    360° cross-line laser with receiver mode

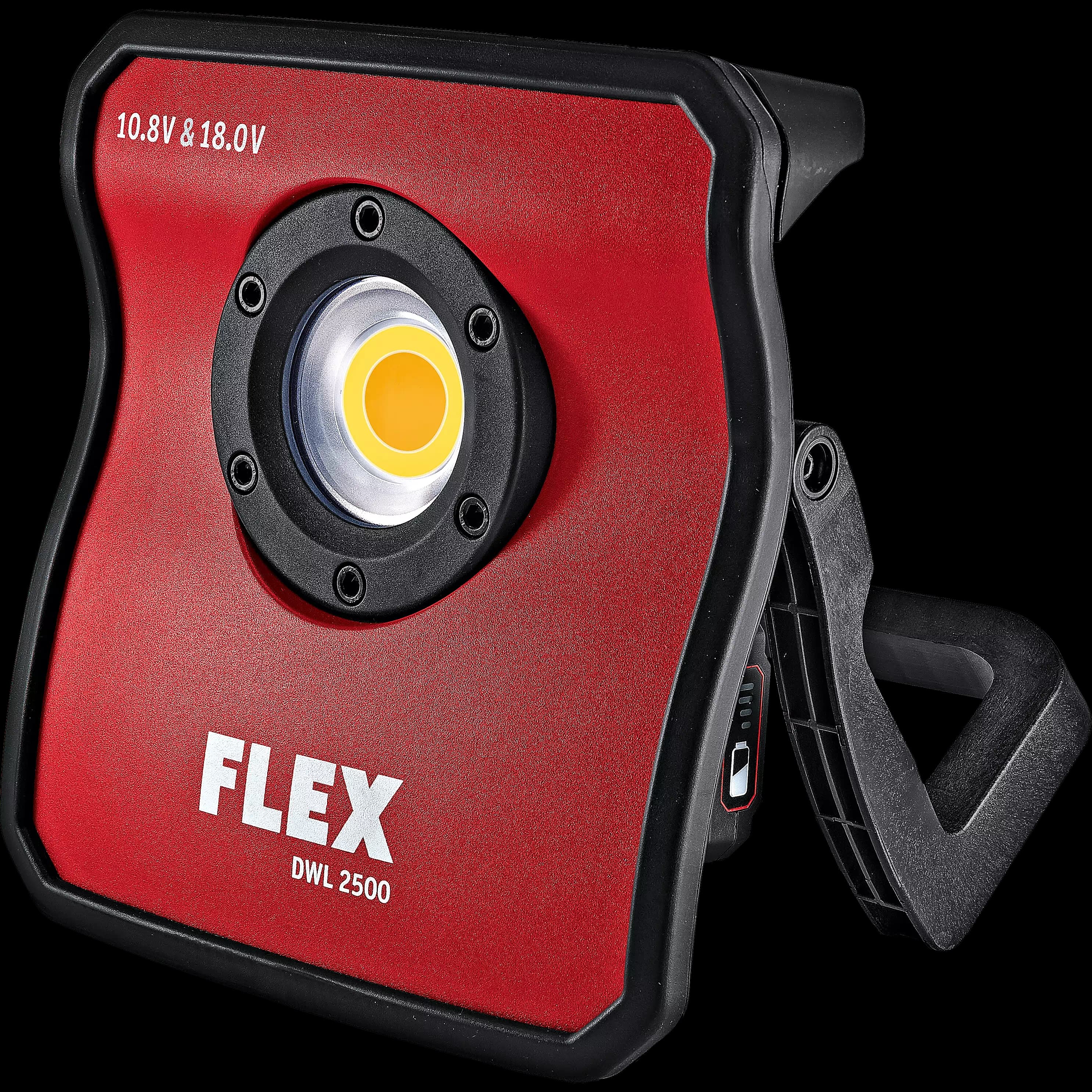

  • DWL 2500 10.8/18.0
    LED cordless high CRI-value full-spectrum light 10.8 / 18.0 V

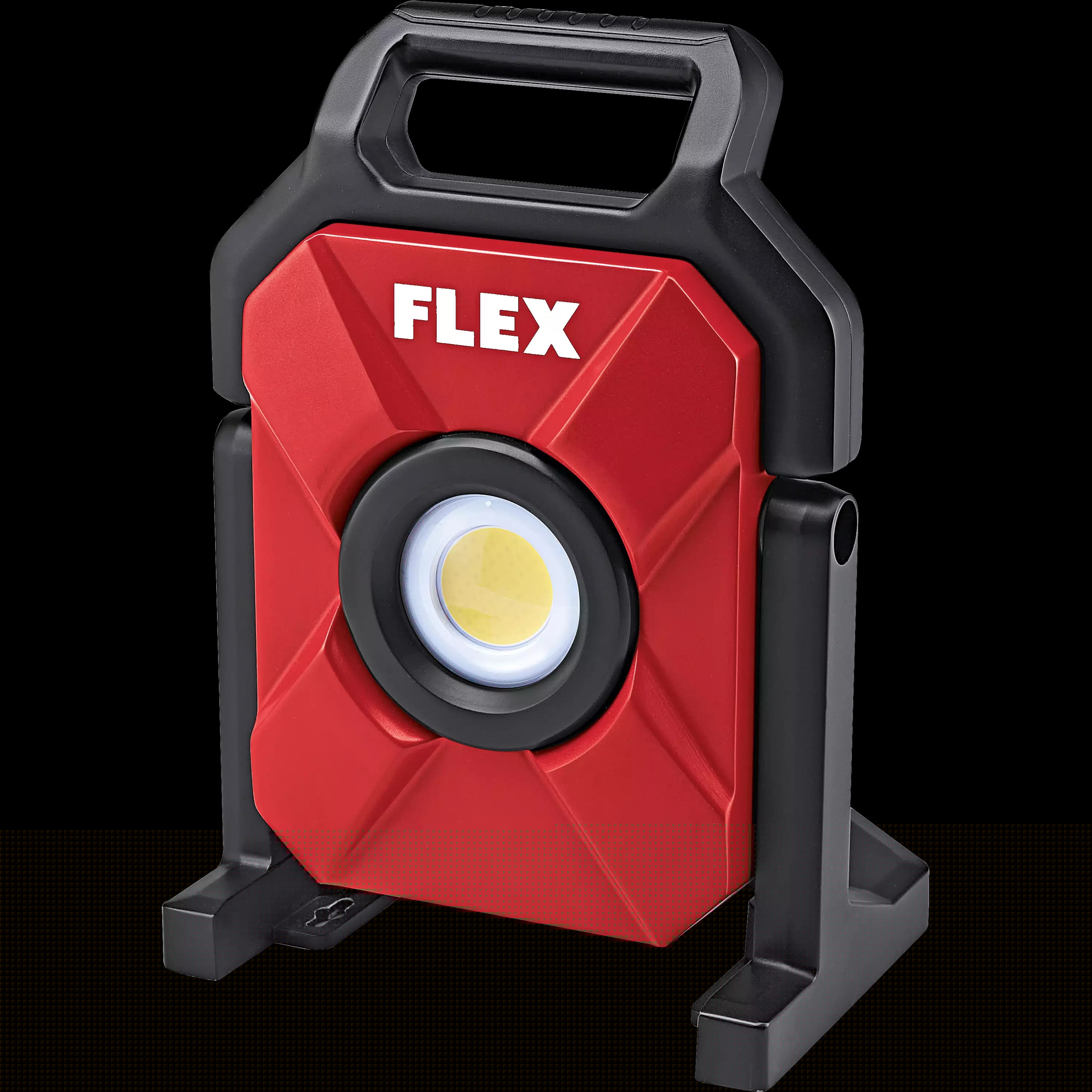

  • CL 5000 10.8/18.0
    LED cordless building site spotlight 10,8/18,0 V

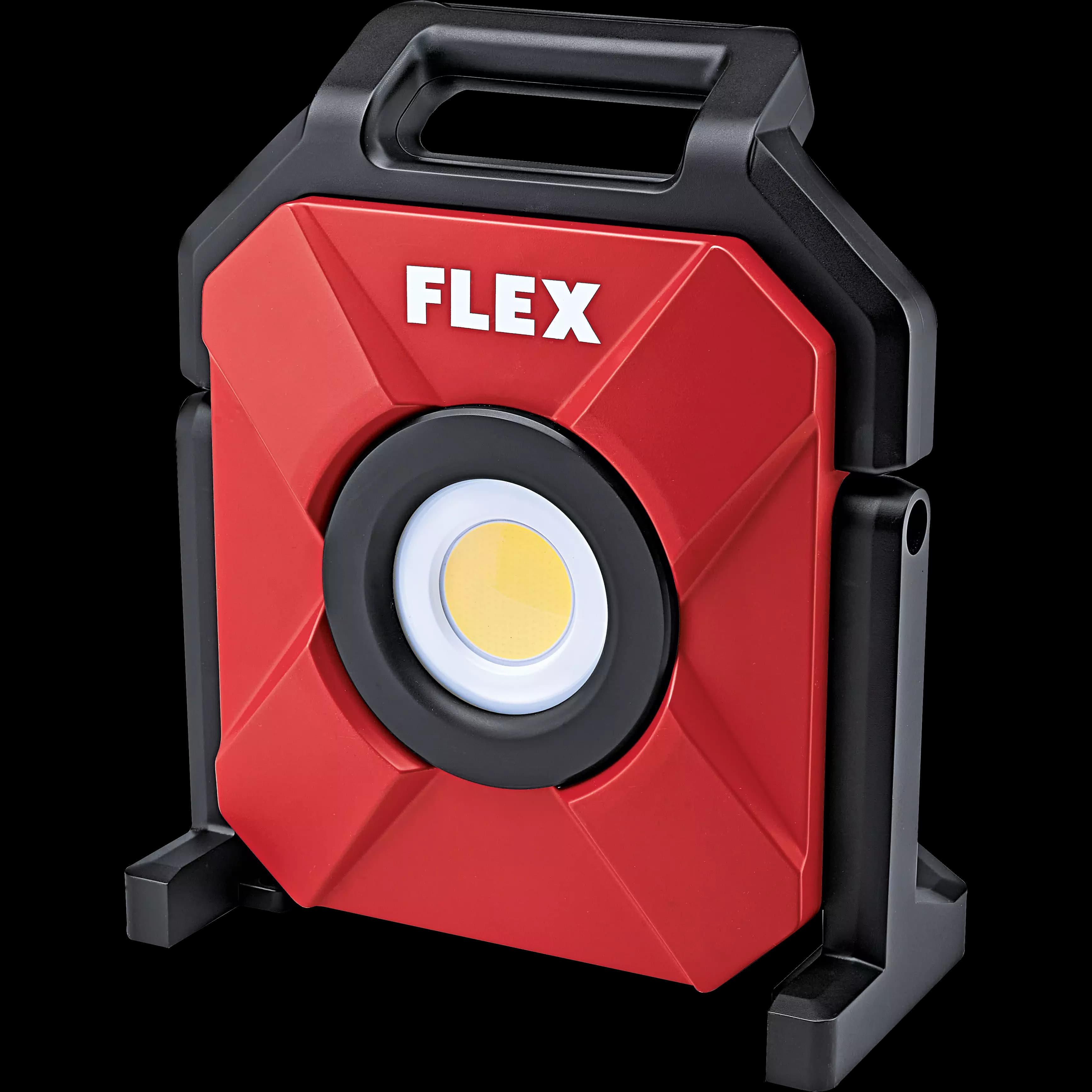

  • CL 10000 10.8/18.0
    LED cordless building site spotlight 10,8/18,0 V
  • 2 Versions

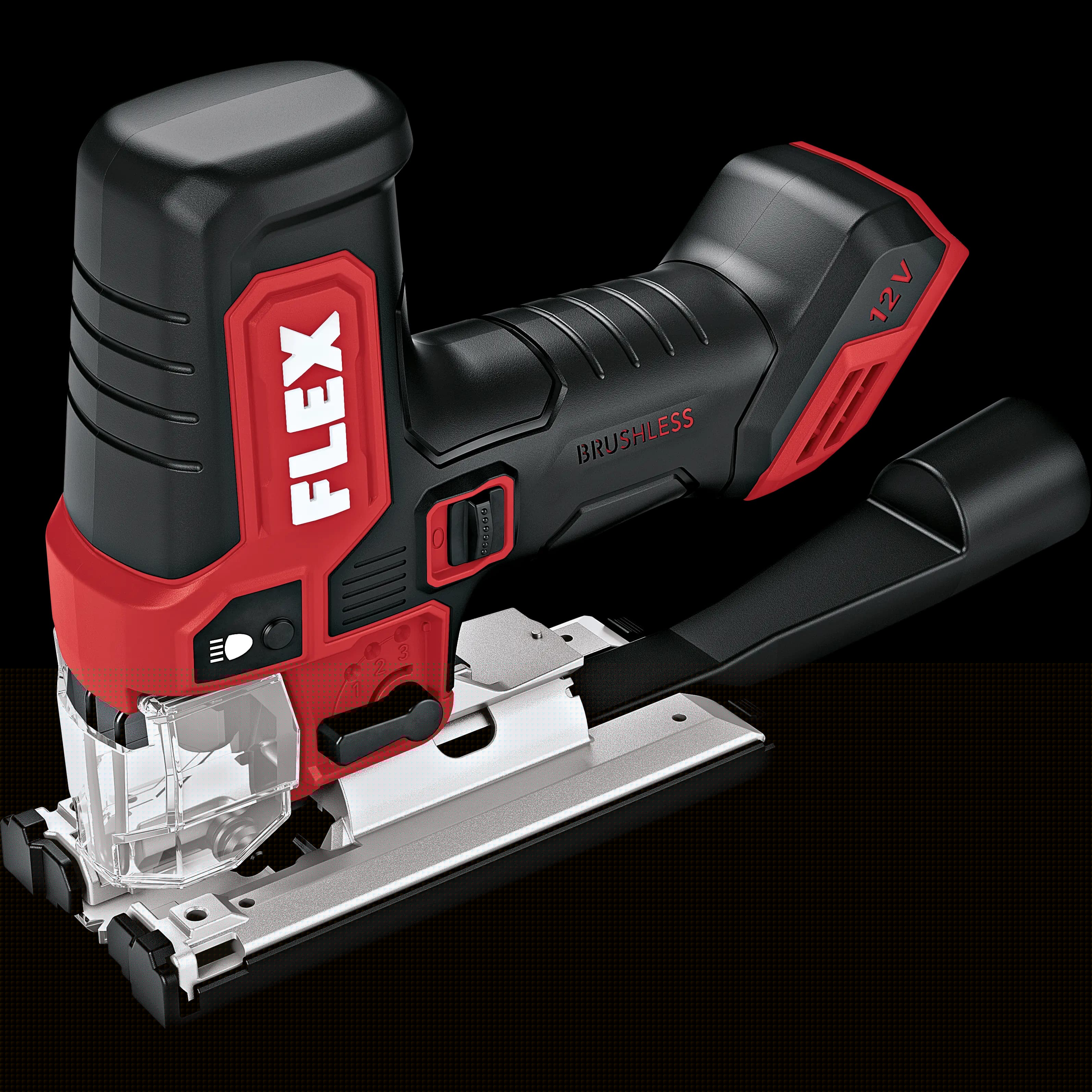

    JSP 12-EC C
